Basic Info.
Model NO.
YSST-600
Volume
270 Liters
Inside Chamber Temp. Range
Rt~50degrees, +/-0.5 Degree
Air Saturated Barrel Temp. Range
Rt~63degrees, +/-0.5 Degree
Salt Water Tank Temp. Range
Rt~ 50degrees, +/-0.5degree
Exteriol/Inner Material
P.V.C & P.P
Color
Ivory or Other
Interior Chamber Material
SUS#304 Stainless Steel Plate
Exterior Chamber Material
Stainless Steel Plate + Powder Coated
Transport Package
Strong Wood Case
Specification
CE, SGS, TUV certified.
Trademark
Yuanyao
Origin
Dongguan, China(Mainland)
HS Code
9024800000
Production Capacity
100 Sets/Month
Product Description

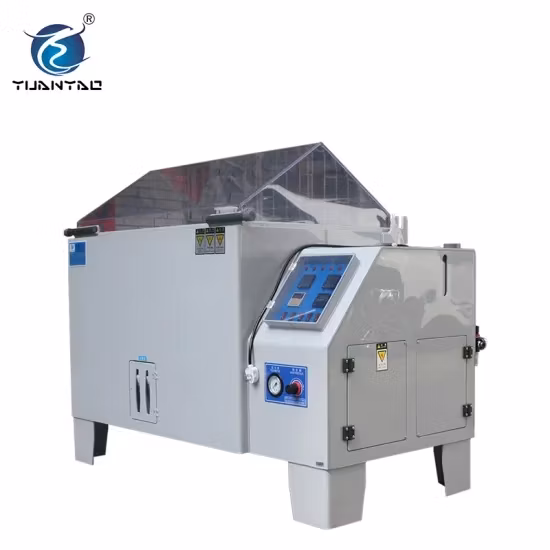

Hot corrosion salt spray test chamber(YSST-600)
Introduction&Application:
Feature:
Technical parameters: See the label.
Except new marketing salt spray test chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Welcome to enquire and purchase !
We will offer you after you have confirmed which one model is suitable for you, thanks.
Introduction&Application:
Salt corrosion test equipment uses salt fog corrosion way to test the reliability of materials and protective
coating to resist salt fog corrosion. It is widely applied to components and parts, electronic components,
metal materials protective layer and other industrial products, etc.
coating to resist salt fog corrosion. It is widely applied to components and parts, electronic components,
metal materials protective layer and other industrial products, etc.
Feature:
1 Entire PP&PVC solid mechanical structure, resistance to hydrochloric acid, heat resistance and never aging, suitable for salt fog copper acetate, etc.
2 Patent nozzle and conical diffusion device makes the fall fog rapidly and evenly. With manual level automatic control mode, the biggest setting time can reach 9990 hours.
3 Have automatic demist device, can clear observe tested products after the experience is finished.
4 Three complete temperature control systems(Saturated air temperature, the temperature in the cabinet, the test liquid temperature) ensure the consistency and standards of the test.
5 Meet international test standards.
6 Customization is available & welcomed.
2 Patent nozzle and conical diffusion device makes the fall fog rapidly and evenly. With manual level automatic control mode, the biggest setting time can reach 9990 hours.
3 Have automatic demist device, can clear observe tested products after the experience is finished.
4 Three complete temperature control systems(Saturated air temperature, the temperature in the cabinet, the test liquid temperature) ensure the consistency and standards of the test.
5 Meet international test standards.
6 Customization is available & welcomed.
Technical parameters: See the label.
| Specification | |||||
| Model | YSST-108 | YSST-270 | YSST-600 | ||
| Internal Dim.WHD(mm) | 600*400*450 | 900*500*600 | 1200*500*1000 | ||
| External Dim.WHD(mm) | 1250*1050*910 | 1550*1210*1060 | 1900*1400*1300 | ||
| Temp. Range | Chamber | Room temp.-- 50ºC,±0.5ºC | |||
| Air | Room temp.--63ºC,±0.5ºC | ||||
| Salt | Room temp.--50ºC,±0.5ºC | ||||
| Saturated Air Pressure(Kg/m) | 0.8--2.0 | ||||
| Spray Volume(m/80cm/hr) | 0.5--3.0 | ||||
| PH | Salt | 6.5--7.2 | |||
| Cu(CH COOH) | 3.0--3.2 | ||||
| Exter,/Inter.Material | P.V.C & P.P | ||||
| Systems | Salt Spray Veicle | Air+acid(base)liquid | |||
| Heating | SUS#304 & #316stainless steel heater+taflon | ||||
| Controller | Hydrometer,salinomerer,fog collector,glassbar | ||||
| Other Components | Digital electronic control+S.S.R | ||||
| Savety Devices | Overheating prevention circult-breaker,dehydration and overheating prevention mechanism,breakdown indicator light | ||||
| Power Source[K.W] | AC 1Ψ 220V 60/50Hz | ||||
| 1.1 | 1.5 | 3.5 | |||
| Comply with ASTM B-117, B-287,B-380,JIS D-0201, D-0205, H-8681, Z-2371, K-5400 | |||||
Except new marketing salt spray test chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal
Shock Tester, Liquid Thermal Shock Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration
Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust
Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Shock Tester, Liquid Thermal Shock Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration
Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust
Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase !
We will offer you after you have confirmed which one model is suitable for you, thanks.
